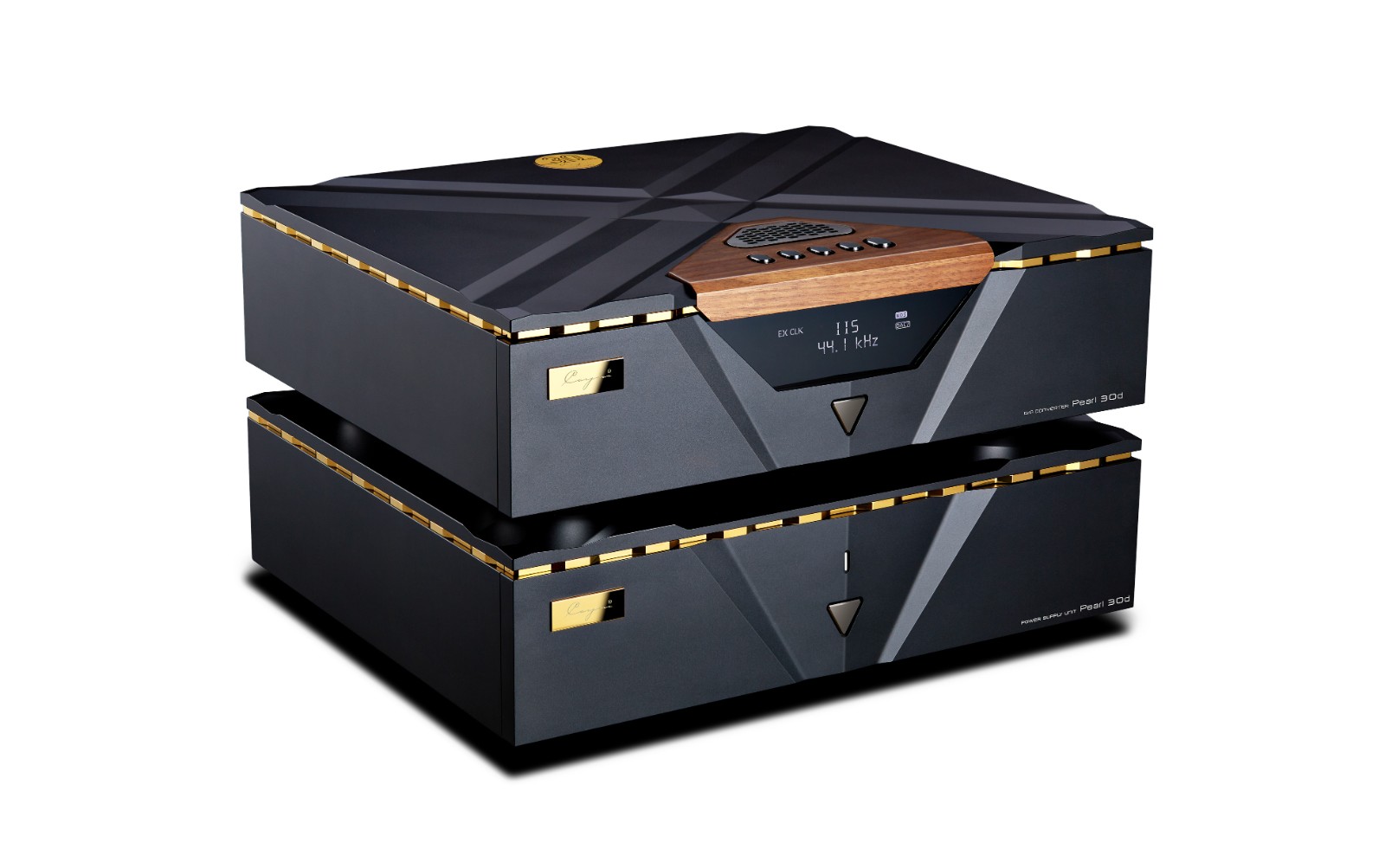

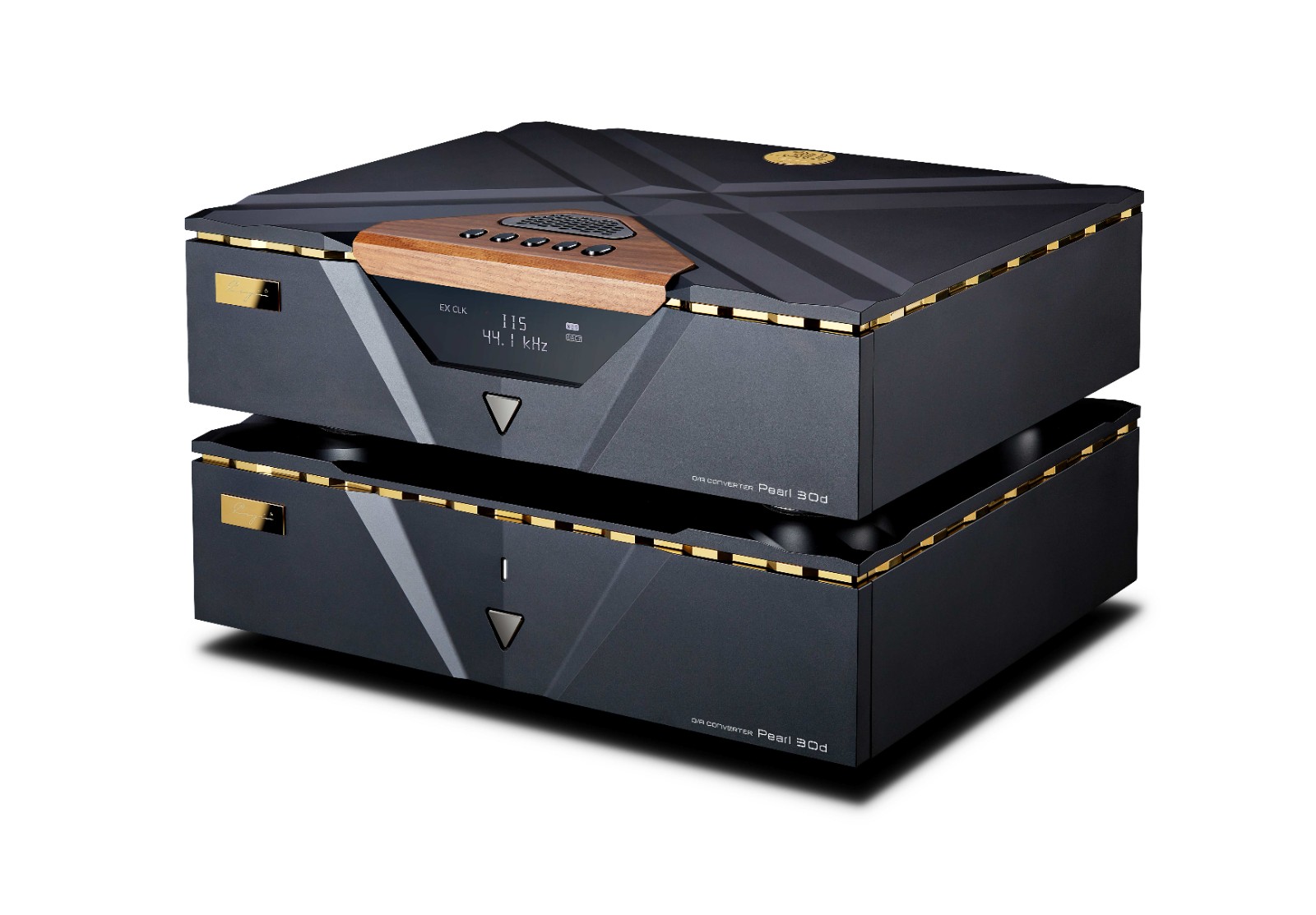

Cayin Pearl 30d D/A Converter

In honor of Cayin's 30th anniversary, the Pearl series has been released. Pure high-end. The series consists of an integrated amplifier Pearl 30i, a separate DAC Pearl 30d and a CD Transport Pearl 30c.

All consist of dual housing in which the power supply is separate from the main unit. This represents the top end and technology in the Cayin product family.

Decoding System:

The Pearl 30d has two different hardware architectures to form two decoding systems, which are Classic decoding system and Modern decoding system.

Classic Mode:

With Classic decoding system Pearl 30d is using one TDA1307 + two TDA1547 architecture, and TDA1547 always works in MONO mode to form a fully balanced

differential circuitry. In this mode Pearl 30d has a retro sound signature.

Working in current output mode, combined with independently designed external amplifier circuitry to achieve I/V conversion Classic Mode of Pearl 30d

has an enhanced audio performance.

Specialized circuit design to achieve PCM/DSD dual-format decoding with built-in PCM and DSD gain compensation circuit. PCM signal takes the TDA1307

and 2xTDA1547 path while DSD signal goes through the 2xTDA1547 path.

Modern Mode:

With Modern decoding System Pearl 30d is using 8 pieces of ESS's current flagship DAC ES9039SPRO, operating in MONO Mode multi-channel paralleled. Each channel takes

4 pieces to form a Matrix DAC architecture with strong audio current output, greater dynamics, lower noise, and stronger driving force.

I/V conversion circuit is combined by discrete components working in Class A mode with dynamic and high current characteristics to ensure that the analog signal density after conversion.

Two pieces of special aluminum heat sink for the DAC architecture. Four pieces of ES9039SPRO on one channel share one heat sink for high thermal efficiency to ensure the

consistency of the output current signal and the output quality of analog signal.

High-specification PCM/DSD dual-format decoding, support for 768kHz and DSD512 digital audio signals.

Auto Mode:

Two different hardware architecture decoding systems can be optionally activated and adjusted according to the audio signal format. At the same time,

an auto mode is available and Pearl 30d recognizes the parameters of the digital audio signal format in order to automatically select the appropriate decoding system.

Ultra Low Phase Noise Synchronized Clock Source

Extremely low phase noise and high frequency stability thermostatic crystal (OCXO, 10MHz), to provide a reference frequency.

Extremely low phase noise multi-channel synchronized clock generator will generate clock frequency of Digital Circuit and other different

functional circuit out of the reference frequency and provide synchronized clocks for different circuits and instruments.

Pearl 30d uses ultra-low loss, stable impedance matching (50 ohms) RF coaxial cable for Clock signal transmission, reducing clock

signal loss and waveform distortion to ensure the clock quality and suppress jitter.

Synchronized Clock Out and In

Pearl 30D has an external reference clock input interface (10 MHz), a synchronous clock output interface that can be connected to an external clock or used as a

synchronization clock source to synchronize the system clocks of different digital device combinations, which will comprehensively improve the playback quality

of the entire system and provide an outstanding listening experience.

Split Power Supply System Design

The physical structure of the Pearl 30d power supply consists of a separate power supply unit and a power supply system for the DAC Unit.

Complex rectifier and filter circuits are used to achieve an extremely clean power supply.

Separate Power Supply Unit

Hi-End audio concept design. Physical separate power supply unit to ensure that the transformer,

rectifier, filter circuit etc power processing are completely isolated and avoid interference.

One Dual C Type of Transformer responsible for ES9039SPRO, Oven Controlled Crystal Oscillator, Clock board, logic circuits and digital audio processing

circuit power supply, equipped with high-frequency inductors, to deal with high-frequecy interference.

One Dual C Type of Transformer Handling TDA1307, TDA1547, Op-amp ICs, Discrete I/V circuits and Discrete line amplifier circuits, with independent rectifier

circuits, mains filter circuits, decoupling circuits, high-capacity chokes to obtain a pure DC power supply, eliminating interference from the source.

One Dual C Type of Choke eliminating low and mid frequency of interference.

Ultra-large scale power supply filtering system: The main board of the power supply unit adopts ten 15000uF high ripple current filtering capacitors

and ten 10000uF audio filtering capacitors.

Power Supply of the DAC Main Unit

The power supply system of the DAC main unit consists of a super-linear voltage stabilization circuit made up of six groups of discrete components.

With a set of ultra-low noise Linear LT1963 voltage regulators, effective voltage stabilization is provided for the high voltage supply.

OCXO (Oven Controlled Crystal Oscillator) is powered by using LT1963 high-current ultra-low noise LDO DC power supply. Turning off the power supply of the DAC Main unit,

the crystal will still continue to be supplied at a constant temperature, so that the clock system can enter into operation once switched on again.

Aviation-grade Power Cable between the Power Supply and DAC Main Unit

The connecting cable consists of a connector that utilizes wires with extremely low internal resistance and a highly reliable mechanical structure.

The connection system consists of 12-pin aviation connector, Germany LAPP KABEL 12-core 0.75mm² ultra-flexible drag chain cable, VIABLUE encrypted

sandwich nylon fiber cotton blend shock-absorbing cable protection sleeve.

Both ends of the same type of aviation plug, regardless of direction, easy to connect.

Full-Channel Digital Audio Jitter Cleaner

The integrated full-channel digital audio jitter cleaner (jitter elimination circuit) significantly reduces the jitter of the SPDIF and IIS signal and thus substantially improves the sound quality.

The digital audio data lines and clock lines in the device utilize low-loss, stable impedance matching. The RF coaxial cable transmission reduces signal loss and waveform distortion and suppresses jitter.

Digital Input Interface

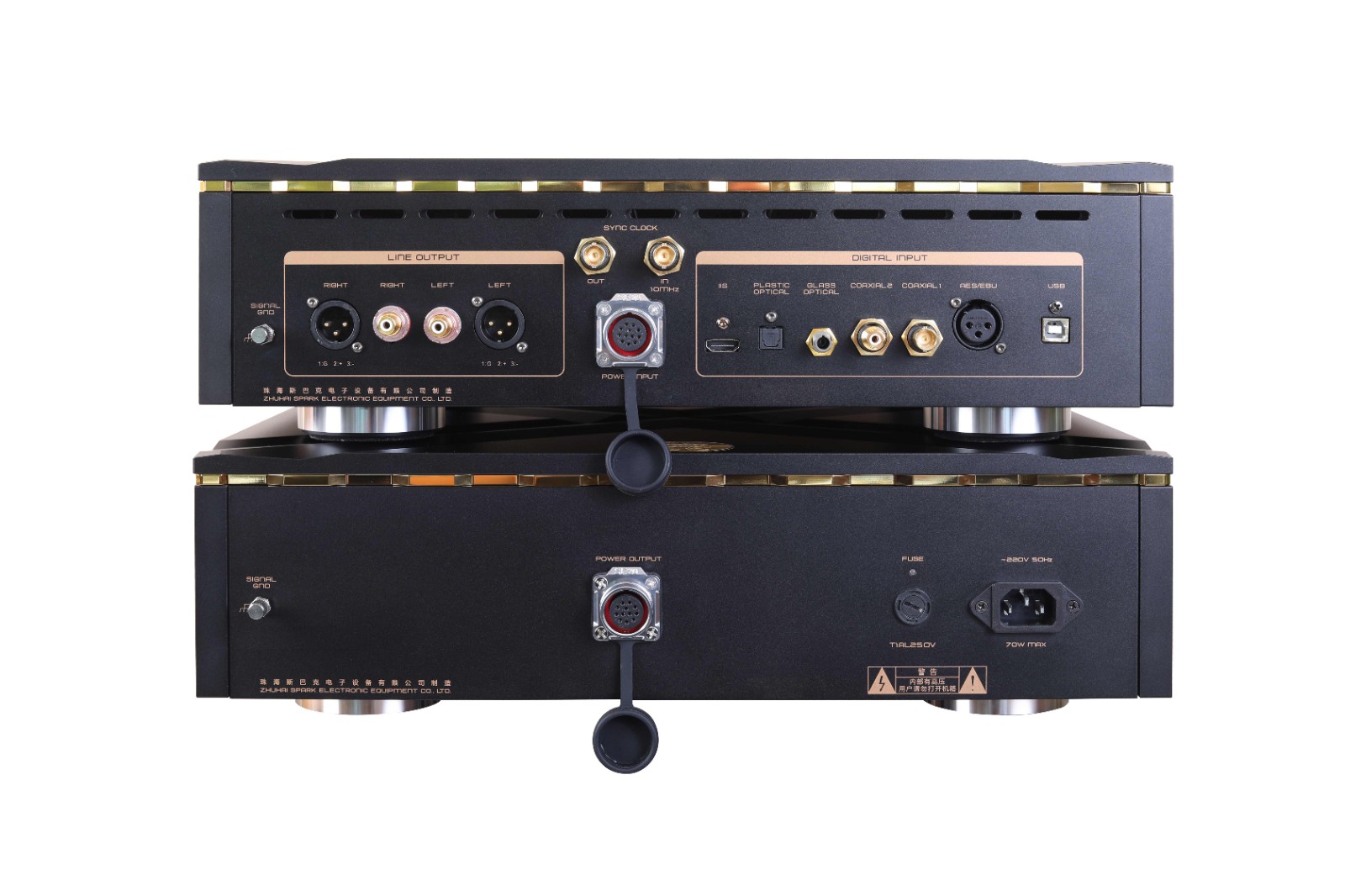

Supports IIS(HDMI-A), AES/EBU(XLR3), Coaxial SPDIF 1(RCA), Coaxial SPDIF 2(BNC), ST Glass Optical, Toslink Plastic Optical, and USB Audio In(Type B).

Analog Output Interface

RCA Single-ended and XLR Balanced Analog Output.

Selectable between standard level and high level outputs.

Reference Clock Interface

External reference clock input connector (10MHz)

Synchronized clock output interface (Frequency Selectable)
